Saturday, November 17, 2012

EV Club

Fellow EVers,

Join me in tracking your EV at http://evclub.org.
This is a handy sight a friend of mine put together to track your EV miles, fuel saved, money saved, carbon reduction, etc.

You can now follow my EV statistics on right side of this blog.

Check it out!

Monday, September 3, 2012

Petition Time

There is a petition going to get the federal government to give us converters the same tax incentives that production vehicles are receiving. This would really help justify the cost needed. Please check out the following link and add your signature to the list.

https://petitions.whitehouse.gov/petition/we-should-support-oem-and-aftermarket-plug-vehicles-same-tax-incentives/V8qMBrGN?utm_source=wh.gov&utm_medium=shorturl&utm_campaign=shorturl

Monday, August 20, 2012

Back on the road. Take 3, or is it 4 now?

Not much to say other than I drove the EV into work again today. I put everything back together this weekend and made some small modifications to how the batteries were secured to the car in that area (where the gas tank use to be). It was a huge pain to get them out and remove that one cell, so I felt I should changes things a bit. Nobody wants to get in there and take this thing apart, but the day will come again.

I've mounted my CellLogs further from the trunk lid. Hopefully this will keep the heat down and reduce my chances of further electronic glitches from. I'm still thinking this was the case of the failure, but don't have any proof without being there.

Tuesday, August 7, 2012

Battery Failure

After about a month back on the road I lost a cell. I drove to work, put it on the charger and it failed to charge. After further investigation I saw the problem.


I had lost a cell. It had expanded upwards! Here are some more pictures after I had removed it from the car.


This is how the battery was. I didn't pull the cells out and I'm not able to. They are very tight! There must be a hundred cells in these.

Here is a close up of one of the cells that ripped open. They are paper thin!

Wednesday, June 27, 2012

Battery load testing

I've been using the CellLog8 units for monitoring my high and low voltage for awhile now. I've yet to use the logging feature of the CellLog8S. Sadly I saved some money and only bought one unit that does the logging. I had to run seven seperate tests and the graphs don't match up for a really good comparison but I think the results still show what I wanted to know, "Which cells have had a significant increase in internal resistance".

The tests main goal was to take the cells to 3C (480 amps) and check for cells that are sagging too much.

All cells are connected with busbars except (15-16, 30-31, 37-38, 42-43, 45-46) which are connected with 2/0 cable.

This is the legend for cells 1-8 of each graph.

Cells 1 - 8
Cell 5 appears the be the worst of them. It sagged below 2.0v at 3C


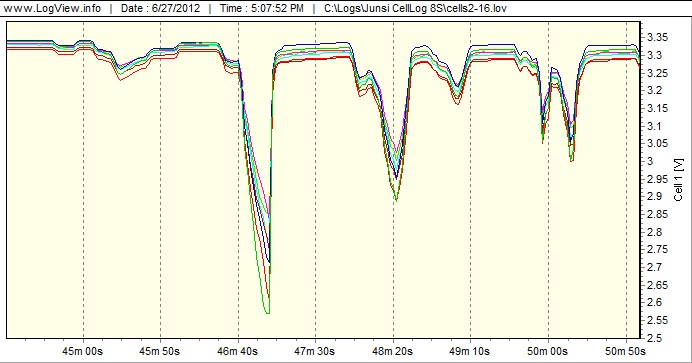

Cells 9 - 16
These cells were fairly spread out from about 2.6v-2.85v. The lowest was 16 so this might be from any voltage sag across the cable.

Cells 17-24
This group was mostly 2.8v-2.9v except cell 19 around 2.6v.

Cells 25-32
This group had cells in the range of 2.4v - 3.0v. The two that stand out are cells 30(2.4v) and 32(2.6v). 30-31 seperate the from and rear packs and would be the area to show the most voltage sag so I don't think this cell is as bad as it looks.

Cells 33-40
This group had a wide voltage range as well. Cell 33 was the worst at about 2.5v.

Cells 41-47
Nothing too bad here, worst cell being 47 at 2.8v.

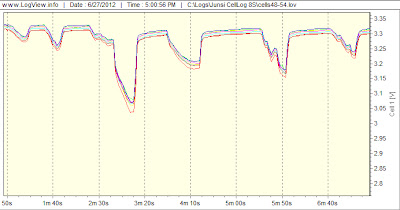

Cells 48-54
By far the best group (these are all newer cells). All cells were around 3.05v-3.1v.

I'm frequently getting low voltage alerts (<2.5v) while driving and was curious how many cells were meeting this criteria. First I'll recheck the torque on the batteries, but assuming thtat is fine, it looks like I can replace the one cell and fix this. My normal driving never reaches 3C range unless I'm really needing to pass somebody. Replacing this one cell should remove the low voltage alerts most of the time. I have an extra cell sitting around that I've tested at 160Ah capacity. I'll replace cell 5 with it and hope the voltage sag on it is closer to the averages seen here.

Sunday, June 17, 2012

Heatsink replaced

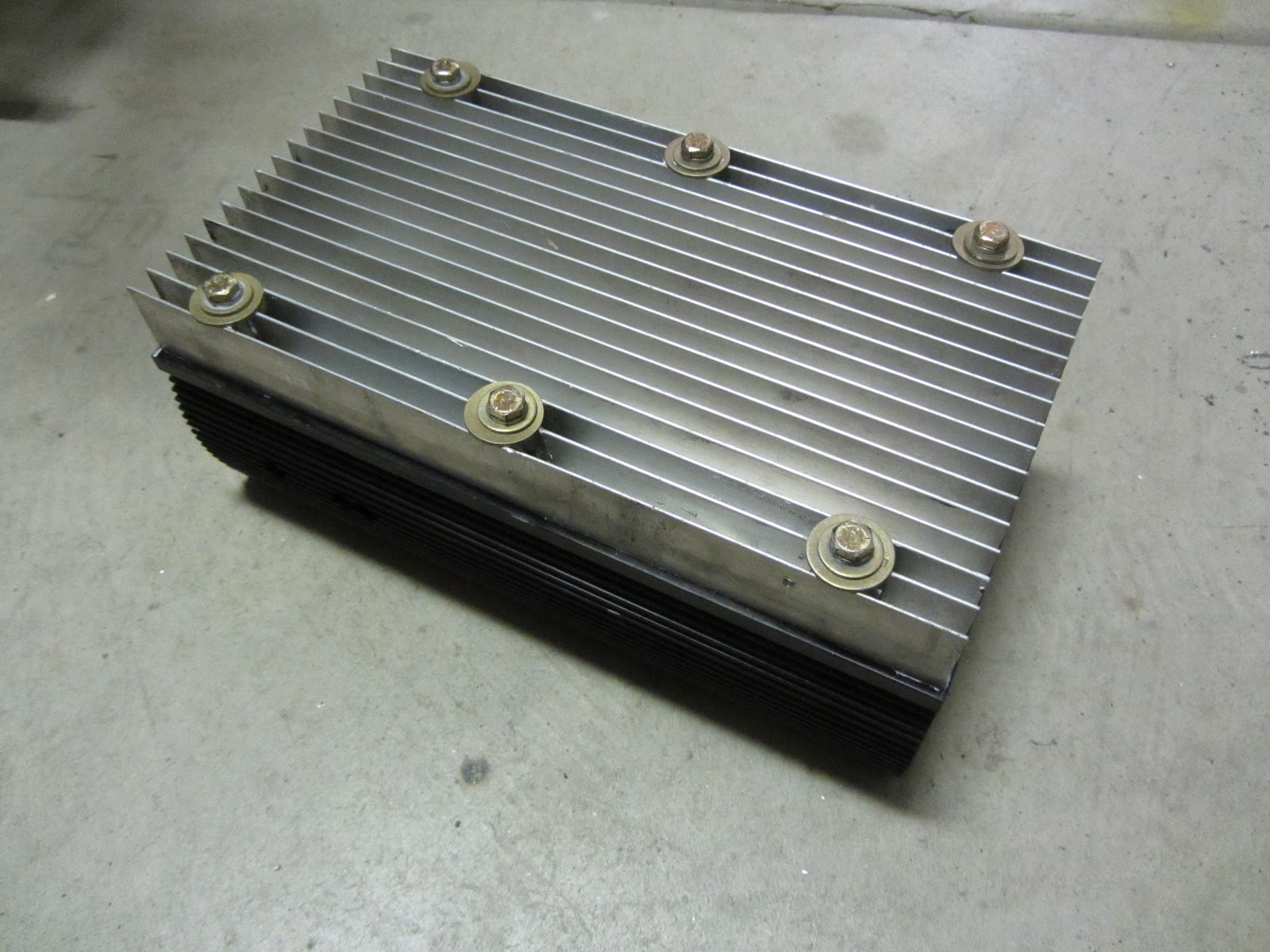

I got some time yesterday and installed a new heat sink that I think will be more efficient while driving. I mentioned before the old heat sink below has the fins parallel with the controller, but the air while driving is perpendicular to the fins.
Here is the new heat sink attached to the controller. You can see the mill work done so the bolts are recessed now and touch the thicker base of the heat sink. This allows for more consistent torquing than before and should allow for better heat transfer. Don't forget your thermal compound when installing any heat sink. Thermal compound greatly increases the heat transfer

I wanted a better way to attach my temperature sensor for the controller. I made a little L bracket that attaches to one of the bolts.

Here is another shot with the sensor attached. I'll try to do some temperature comparisons next week, but with the increase in temperature just over the weekend it may be hard to get any reliable results.




Thursday, June 14, 2012

This is cool!

Awhile back when I was still running the ADC 9", I had installed the air conditioner around Fall time or so. Before summer hit, the ADC motor went out. Replacing with a Netgain Warp 9 I soon found out that only the transmission bolt patterns matched. The accessory side did not. The accessory output shaft was larger, the motor diameter, slightly larger. A few little things that made my existing AC setup worthless.

Now that I'm driving to work again, and the heat is coming, I figured it was time to rebuild the AC system. There was quite a bit of machine work needed, so luckily my uncle Duane had some time yesterday. The main pulley was bored out to 7/8" and a new key way made. A thin bushing was made that went on the shaft first. This slid to the furthest inward point on the shaft and allowed us to tighten against that and not allow anything to slowly walk in and rub on the housing. Next, I reinstalled the Netgain RPM sensor and finally the main pulley went back on. A 3/8" bolt, custom washer, and some Loctite then went on to keep everything in place. The mounting brackets base had to be cut and slid outwards about 1/4" to account for the new position of the main pulley.

Here are some pictures of the final system. You can see I reused the auto tension pulley from the original serpentine belt system. I reused the same belt I purchased the first time I did the AC. Luckily it was still the right length even after the positioning of the components shifted a bit.



I took it out for a drive today after I finished. It was about 92F outside, so not too bad but hot enough when the top is up to make you start sweating pretty quick. I turned on the AC and instantly the temperature dropped to a very comfortable level and remained there for a quick 10 mile test. Too cool! No more hot days driving home.

The heat from the condenser now passes right by my motor controller and that heat sink. I'm now noticing the temperature of my motor controlling running much hotter. I'll be replacing that heat sink next with one where fins run parallel with the wind, compared to perpendicular as they do now. More on that later.

Monday, June 11, 2012

Back to work

I drove the S2K to work all last week and things are looking pretty good. I'm using 100Ah to get from home to work and 65Ah to get back home. This gives a pretty idea of what a 2,000 ft elevation climb will do to your range. Since my weakest cell is still delivering nearly 140Ah, I should be in good shape for quite some time.

Air Conditioning:
The weather is going to start heating up. Later this week I have plans to meet up with my uncle and get some machine work done. Afterwards, I can rebuild the brackets to mount the compressor and I should have a comfortable commute home in the afternoon. I'll post some pictures of the AC system when completed.

Sunday, June 3, 2012

My worst cell

I was curious to see how much my cells have degraded so I took the car out for a test drive. I forgot how much I missed this car until I dropped the top and drove through the hills. What a blast!

I drove 65 miles and brought it home using 137 Ah. At this point my check engine light was coming up with only about 1C draw so I new at least one cell was getting low. I saw that my voltages were fairly well scattered around which was expected considering how scattered the self discharge seems to be.

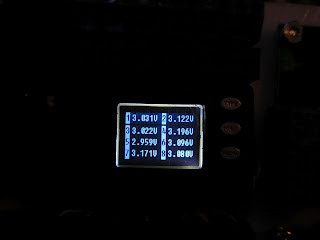

Below are the photos of each cells voltage starting from the back of the car and working forward. There is one cell at 2.7v. This cell is basically dead and my worst cell. I'll probably yank or replace at least it. I have two more cells at 2.9 which means there is maybe another 5Ah in them tops. Most of the remainder of the pack is around 3.1. I'm guessing there is at most 10Ah in these cells. On the last two pictures you'll see sequentially 10 cells which are all 3.25v. These are the additional cells I added about 1.5 years go which have almost no miles on them compared to the others. They are still happy and have at least 20-25Ah left in them I'm guessing.

So this means that my worst cell is still giving me just over 85% capacity after four years. If I hadn't over charged some cells slightly, and over discharged multiple times, and never went over the 3C rating, I would be a bit upset. Considering the abuse I'm guessing this is right on par with what's to be expected.










So now I'm debating what to do. Ultimately I'm thinking I'd like to go with a much higher pack, say 350v using 100Ah CALB cells. These cells are now rated at 4-5C with 10 second bursts of 8C! This would require multiple changes. First and obviously the pack needs to be completely replaced which isn't cheap. Second the motor controller would need to be replaced with something like the Netgain or Soliton1 which allows high input voltage but you can regulate the motor side voltage to keep it safe. This also equates to even lower cell side amperage draws which should be easier on the cells. I'd also need to replace the charger. No hard feeling here though. The Thundersky charger is twice the size of say the Manzanita Micro charger for the same output (did I mention is weighs twice as much too?).

My other thought is to slowly replace the TS 160Ah cells as they wear out with CALB 180Ah cells. Physically they are identical so no mods would be required. These cells are also 4-5C rated so they can handle the amps my modified Curtis is demanding. I've got some thinking to do.

Either way, before I get back on the road any time soon, the AC needs to be redone. I'll need to engineer the mounting bracket (again) and machine some parts for the pulley. It's a shame it wasn't a direct bolt on replacement from the ADC 9".

It's suppose to cool off next week, so despite no AC, I think I'll drive it to work and see how the batteries hold up before investing any further time.

Tuesday, May 29, 2012

Too much voltage, a new motor, and self discharge.

Sorry for the long delay in updates. I ran into just a couple months after starting to drive again (this was more than a year ago now). The ADC just couldn't handle the extra voltage and fried. The armature had a nice black burn on it. I debated getting it repaired but figured this motor was never intended for this much voltage. I purchased the gen 2 Warp9 which is suppose to handle a lot more voltage. It was also suppose to be a direct bolt in compared to the ADC 9. Some of this is true as the transmission mounted up perfectly. Unfortunately the motor itself is slightly longer and wider. I had to redo my motor mounts and the battery rack above the motor to get it to fit. The AC, of course, then also did not mount back up and I still haven't finished redoing it.

While driving though I did figure out the cutting out issue I'd been seeing. It was not the motor but the controller itself. It was switching frequencies and making a terrible jerking affect. My friend has now modifed the controller to remove this feature.

The car was done for quite awhile and then not driven at all the last year which led to another interesting discovery. Remember that I dropped all balancing boards to experiment to see the real need for this. Every 3 months or so I'd go out and plug the car back in to charge. Now, after a year I was getting ready to take it on a long drive and notice one cell was very low 3.1v resting. I charged the pack but only to replace about 20Ah in the pack. I then charged the one cell to find it took an additional 60Ah! My first thought was this cell is bad but it turns out most of pack was VERY unbalanced just from the self discharge. Each cell was different taking another 20-60Ah compared, I guess, to some of the better cells that didn't self discharge so bad. I'm in the process of replacing the balancers and getting the pack balanced again. I then plan to do another capacity test on this pack and see what shape it's in. I'm hoping to start driving it to work again when weather permits.
